| POWER | 96W |
| INPUT VOLTAGE | 100-130V |
| OUTPUT VOLTAGE | 24V |
| OUTPUT CURRENT | 4A |
| PF | >0.99 |
| EFFICIENCY | 90%-92% |
| PRODUCT SIZE (mm) | 105*54*51mm |
| Location | for indoor Dry, Damp |
| CERTIFICATION | UL Class 2 Class P FCC |
DD-24096-CCT
DD-24096-CCT
$0.00

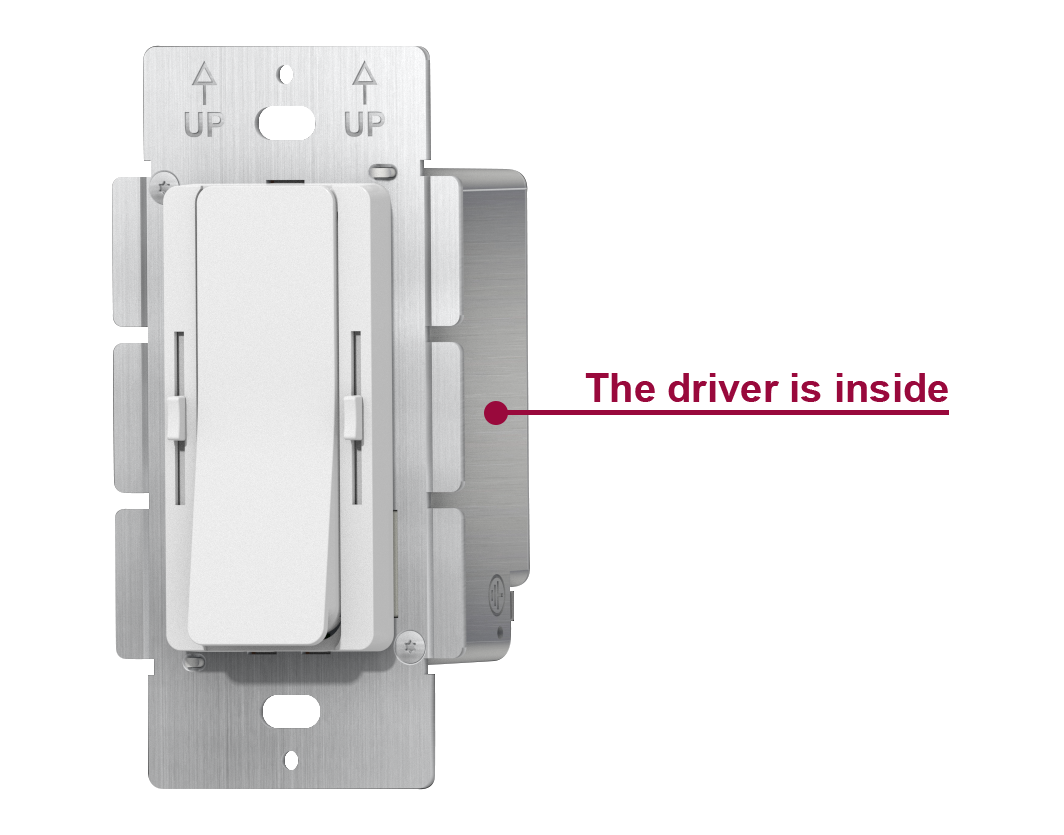

THE DD CCT is a LED driver and tunable white controller with dimming capability for LED lighting, offering flicker- free 20kHz PWM output and a wide 0.3%-100% dimming range. It features separate color temperature and dimming control. With a high efficiency (up to 92%), built-in active PFC, and multiple protections, it ensures reliable performance. Designed for dry and damp locations, it also operates silently via free air convection.
- Output: Constant Voltage
- Input Range: 120VAC
- PFC design: Built-in active PFC function
- Protections: Short circuit/ Over load/ Over temperature
- Heat dissipation: Cooling by free air convection
- Waterproof performance: For dry and damp locations (US)
- Design features:
- 1)Fine-tune output voltage can be adjusted slightly
- 2)Preset dimmer with on/off switch
- 3)3-Way switches
- 4)Dimming and color temperature adjustment function.
- 5)Eliminated compatibility issues between drivers and switches
- Dimming range: 0.3%-100%
- Application: Suitable for the application of LED lighting
- Warranty: 5 years warranty
- Others: 16KHZ PWM output with dimming curve is a gamma 2.2 curve Flicker-free
