| INPUT VOLTAGE | 24V DC |
| POWER CONSUMPTION | 40W |
| LUMEN OUTPUT | 105 LM/W |
| # OF LEDS | 420 PER SHEET |
| CRI | 90+ |
| COLOR TEMPERATURE | 27K/30K/35K/40K/50K |
| BEAM ANGLE | 120° |

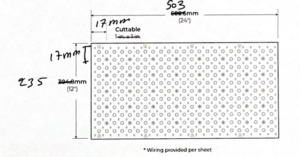

| CUTTABLE | 17MM X 17MM |
| MAX RUN | 10 Sheets |
| DIMMING | ELV, 0-10V and TRIAC |
| OPERATING TEMPERATURE | -22°F (-30°C) to 104°F (40°C) |
| ENVIRONMENT | Dry/Damp Location only (Indoor) |
| CERTIFICATIONS | UL Listed |
| LUMEN MAINTENANCE | 50,000 Hrs |
FS-1909
FS-1909
$0.00
The FS-1909 is a high-efficiency flexible sheet module capable of delivering 4000 Lumens per SHEET. This flexible light sheet can be cut to create a unique light shape. The FS-2412 is ideal for creating backlights for photos, graphics, signs, displays and photography applications.
- 4000 Lumens per Sheet
- Ultra-Thin LED Light Sheet
- Flexible 50mm bend diameter
- Superior Color Rendering Index
| Color | Voltage | LED qty | IP | Power/Sheet | Lumens | Cutting LED Size | Sheet Size |
|---|---|---|---|---|---|---|---|
| 2700K | 24V | 420 | 20 | 40W | 4000lm | 17MM X 17MM | 503*235mm (19.8”*9.25″) |
| 3000K | 24V | 420 | 20 | 40W | 4000lm | 17MM X 17MM | 503*235mm (19.8”*9.25″) |
| 3500K | 24V | 420 | 20 | 40W | 4000lm | 17MM X 17MM | 503*235mm (19.8”*9.25″) |
| 4000K | 24V | 420 | 20 | 40W | 4000lm | 17MM X 17MM | 503*235mm (19.8”*9.25″) |
| 5000K | 24V | 420 | 20 | 40W | 4000lm | 17MM X 17MM | 503*235mm (19.8”*9.25″) |
