| INPUT VOLTAGE | 24V DC |
| POWER CONSUMPTION | 40W |
| # OF LEDS | 840 PER SHEET |
| CRI | 95+ |
| COLOR TEMPERATURE | RGB+30K/RGB+40K/RGB+50K |
| BEAM ANGLE | 120° |
| MINIMUM CUT LENGTH | 23.5MM X 23.5MM |
| MAXIMUM RUN LENGTH | 4 Sheets (5A|140W) |
| DIMMING | Through RGBW Controller |
| OPERATING TEMPERATURE | -4°F (-20°C) to 140°F (60°C) |
| ENVIRONMENT | Dry/Damp Location only (Indoor) |
| CERTIFICATIONS | UL Listed |
| LUMEN MAINTENANCE | 50,000 Hrs |
FS-1909RGBW
FS-1909RGBW
$0.00
“The FS-1909 RGBW is a flexible, color-changing
+ white LED sheet module ideal for high density
and slim lighting applications. Achieve rich, colorchanging lighting effects via RGBW controller (sold
separately) or illuminate a whole area or spread.
Rated to last 50,000 hours.”
- Upto 3200 Lumens per Sheet
- Ultra-Thin LED Light Sheet
- Flexible PCB for proper bending and versatile use
- Superior Color Rendering Index
- Suitable for Accent or Ambient Lighting
| Color | Voltage | LED qty | IP | Power/Sheet | Lumens | Cutting LED Size | Sheet Size |
|---|---|---|---|---|---|---|---|

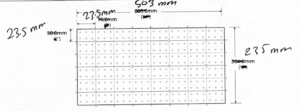

| RGBW3000K | 24V | 840 | 20 | 40W | 3400lm | 23.5MM X 23.5MM | 503*235mm (19.8”*9.25″) |
| RGBW4000K | 24V | 840 | 20 | 40W | 3400lm | 23.5MM X 23.5MM | 503*235mm (19.8”*9.25″) |
| RGBW5000K | 24V | 840 | 20 | 40W | 3400lm | 23.5MM X 23.5MM | 503*235mm (19.8”*9.25″) |
