| INPUT VOLTAGE | 24V DC |
| POWER CONSUMPTION | 35W |
| # OF LEDS | 2216 PER SHEET |
| CRI | 95+ |
| COLOR TEMPERATURE | RGBCCT3000K+6000K |
| BEAM ANGLE | 120° |
| MINIMUM CUT LENGTH | 30 MM x 30 MM |
| MAXIMUM RUN LENGTH | Sheets (5A|140W) (8.75A/210w) |
| OPERATING TEMPERATURE | -4°F (-20°C) to140°F (60°C) |
| ENVIRONMENT | Dry/Damp Location only (Indoor) |
| CERTIFICATIONS | UL Listed |
| LUMEN MAINTENANCE | 50,000 Hrs |
FS-2412RGBCCT
FS-2412RGBCCT
$0.00

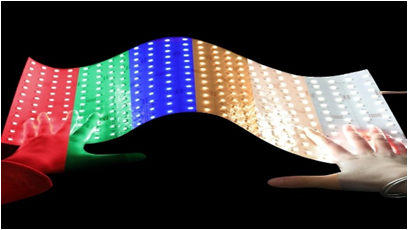

THE FS-2412RGBCCT LED sheet series is ideal for light boxes with a depth of >1.57″. RGB+CCT gives you access to color changing lights and color temperature adjustable light in one single sheet. Its thick PCB board and high quality SMD5050 5 in1 chips will ensure constant brightness. It is highly versatile, dimmable, and suitable for both lighting and accenting. There are XH-6Y connectors easy for connection and super slim 3M double-side tape with strong adhesive.
- Upto 2100 Lumens per Sheet
- Ultra-Thin LED Light Sheet
- Flexible PCB for proper bending and versatile use
- Superior Color Rendering Index
- Suitable for Accent or Ambient Lighting

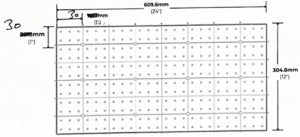

| Color | Voltage | LED qty | IP | Power/Sheet | Lumens | Cutting LED Size | Sheet Size |
|---|---|---|---|---|---|---|---|
| RGBCCT3000K+6000K | 24V | 2216 | 20 | 35W | 2100lm | 30MM X 30MM | “305*609mm(1ft*2ft)” |
