| MAX. OUTPUT POWER | 96W |
| INPUT VOLTAGE | 100-130V |
| OUTPUT VOLTAGE | 24V |
| OUTPUT CURRENT | 4A |
| PRODUCT SIZE (mm) | 84*40*26*25mm |
| Location | dry & damp |
| CERTIFICATION | UL Class 2, Class P Type HL |
TR24096TD
TR24096TD
$0.00
The TD SERIES UL Listed Class 2 phase cut dimmable led drivers offer a super compact case that easily fits into any standard junction box. Dimming is smooth down to 1% with any standard ELV / TRIAC (leading or trailing edge) dimmer switch. With high efficacy performance, those drivers are designed to power any LED 12VDC and 24VDC LED strip application.
- Dimming function: Electronic Transformer Triac/ ELV/ MLV dimming
- Dimming range: 0-100%
- Waterproof performance: For dry and damp locations
- Input: 120VAC
- THD: THD<20%@120V Max. load
- Output type: Constant voltage

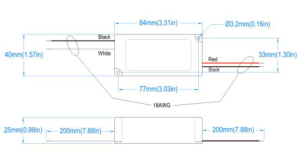

- Small size: 84x40x25 mm / 3.31×1.57×0.98 inch (L*W*H)
- Loading: Ultra-low load requirements: Operates flawlessly at 20%-100% load.
- Protections: Short circuit / over load
- Compatibility: Compatible with popular dimmers in the market, Lutron-CL, Diva series and so on.
- • LED strip/ LED tape/ LED module
- • Residential Lighting
- • Commercial Lighting
- Warranty: 5 years warranty
