| POWER | 100W |
| INPUT VOLTAGE | 110-277Vac |
| OUTPUT VOLTAGE | 12V|24V |
| OUTPUT CURRENT | 8.33A|4.17A |
| PF | >0.95 |
| EFFICIENCY | 87%-90% |

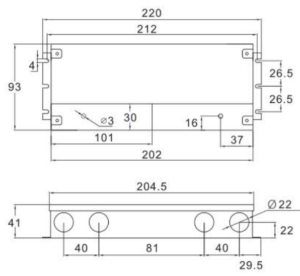

| PRODUCT SIZE (mm) | 226.5*117.5*42.5 |
| IP | IP65 |
| CERTIFICATION | “UL cUL ETL cETL FCC Class 2. ROHS” |
TRDEM100W
TRDEM100W
$0.00
DEM SERIES indoor/outdoor drivers are highly efficient, stable with smooth dimming capability compatible with most TRIAC, ELV, MLV, 0-10V reverse and forward phase dimmers, and on/off switches. These drivers are factory derated which allows them to be loaded to maximum wattage capacity.The wet/dry housings are IP66 rated designed to fit most installations.
- Output constant voltage
- UL, cUL listed, Class 2, Class P, Type HL
- Universal AC input: 100-277VAC
- Power Factor: up to 0.99
- High efficiency : up to 83%
- Dimming range: 0-100%
- Load: 10-100%
- Protection:short circuit/over loading/ Over temperature
- PWM output, does not change the color index
- Full protection aluminum housing, for dry, damp locations
- Flicker-free
- Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers,0/1-10V Dimmers, and Multifunction.
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
